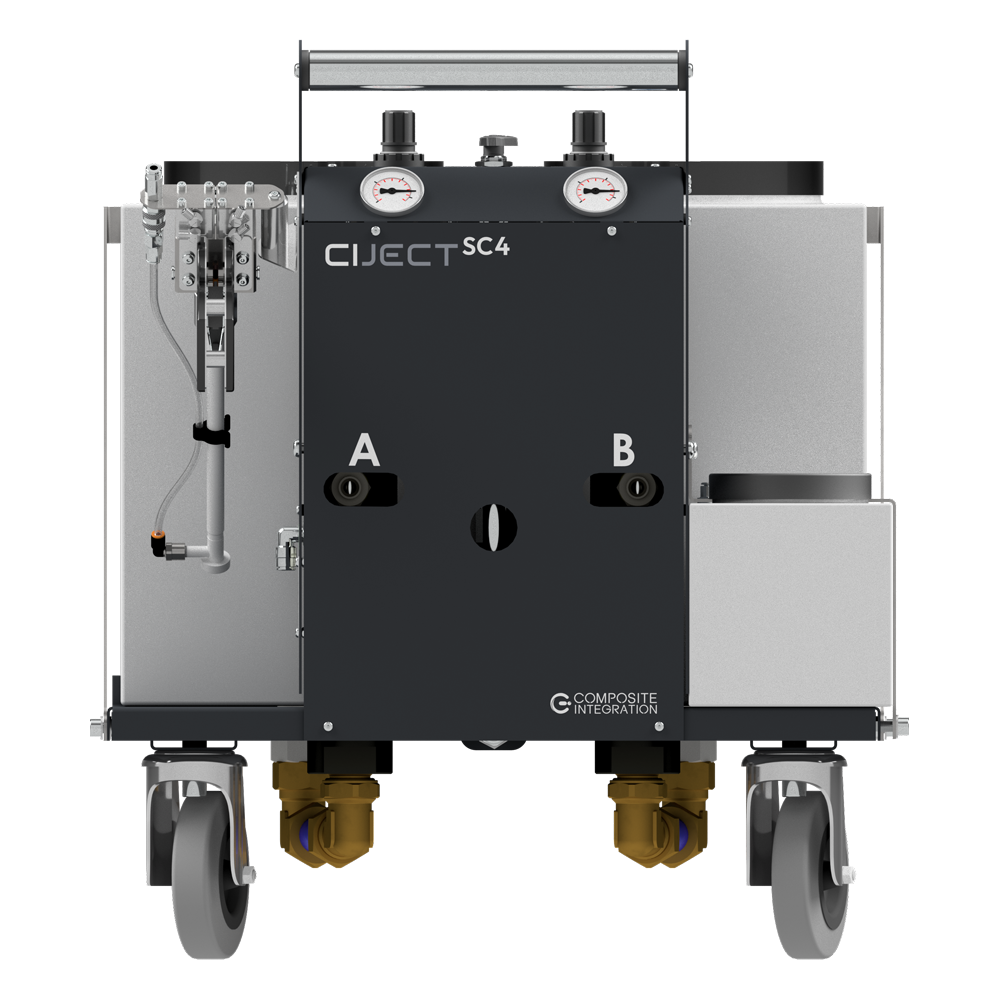

The SC4 Silicone Spray System is designed to dispense/spray silicones at a mix ratio of 1:1 with an additional third pump to enable ‘Thixo’ additive to be used on-demand.
The machine features two precision double-acting pumps dispensing through the unique SC mix-head. The third additive pump can be switched on/off by turning to recirculate when not in use.
The mix-head can be used to simply dispense mixed material or spray with the air-assist spray nozzle.
- Suitable for dispensing and spraying addition (platinum) cured silicones.
- Integral material tanks are mounted on the rear of the machine.
See below for full specification:
SC4 Features
| Machine/Feature | Specification |
|---|---|
| SC4 | |
| Material tank size | 2 x 25 litre |
| Pump type | Double-acting positive displacement |
| Pump configuration | 2 x 100cc 1 x 4cc |
| Mix ratio | 1:1 with switchable Thixo @ 2% |
| Control | Pneumatic Thixo on/off Pump speed control Spray atomiser control |
| Mix Head type | Pneumatically actuated head valves Static mixer Inlet valve for additional Thixo additive |
| Spray Head type | Removable air assist spray nozzle at end of static mixer |
| Hose length | 4m |
| Weight | 59 kg |
| Dimensions | 640mm x 570mm x 675mm |
